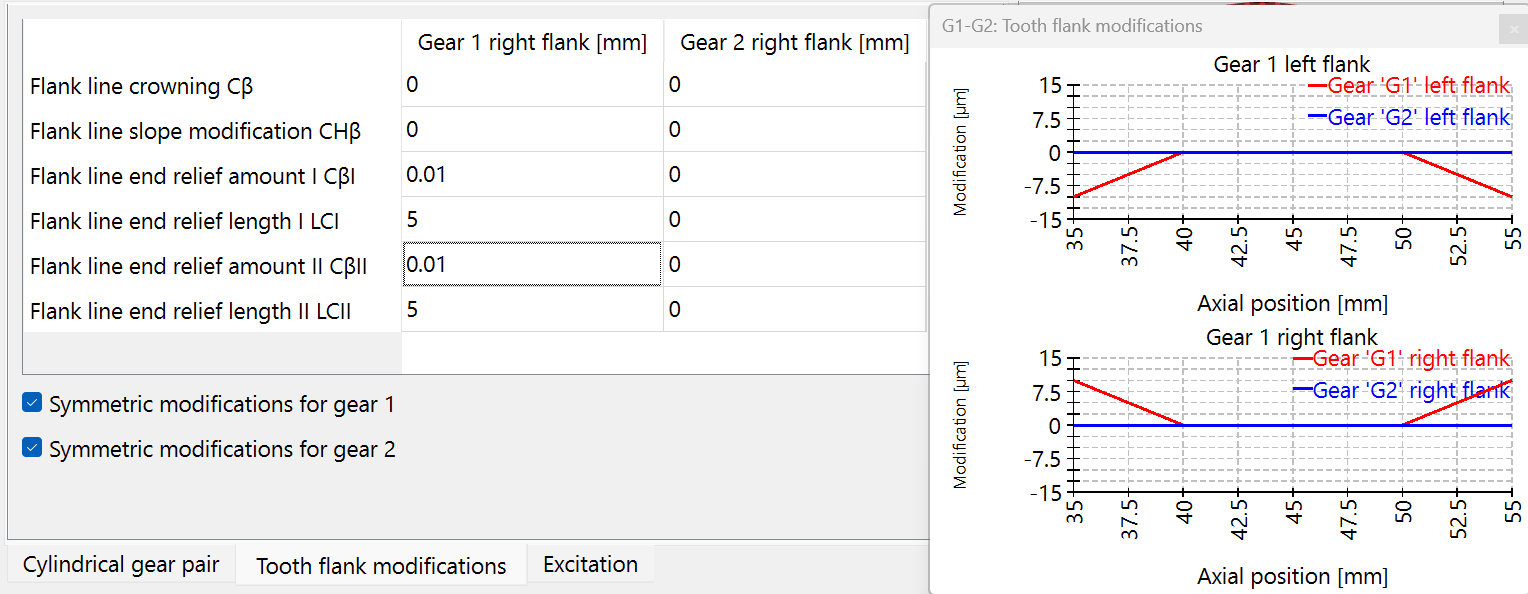

It consists of an increasing linear relief starting from a certain point until the end of the flank line. The relief amount and length, which are measured from both ends of the tooth, must be specified.

all_img80

all_img81



All in all, the user can make use of the line load and gap width graphics as guidance to stablish a flank correction proposal. If, for instance, we start from a gear tooth mesh condition like this:

all_img82

all_img83

And we apply a combination of flank line crowning and flank line slope modification, it significantly helps to have an homegenous line load as shown in the following pictures:

all_img84
